- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGGS90,JS-TGGS120,JS-TGGS150

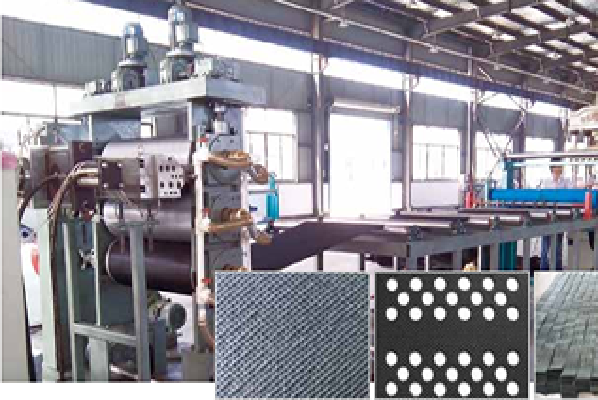

Junsheng plastic geocell production line can produce the plastic geocell with thickness from 0.8 to 3mm, smooth or embossing surface, with holes or without holes.

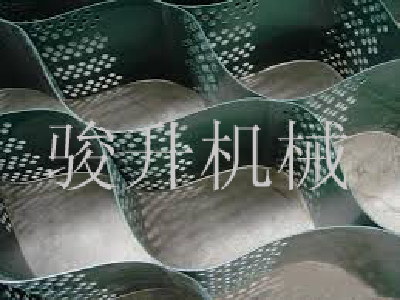

Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil , etc.
Geocell is widely used for soil stabilization; to help improve the performance of standard construction materials and erosion-control treatments. So, it ' s mainly used in fields of erosion control, load support, slope protection,channel protection, retaining wall, ground stabilization and slope protection applications.
- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGGS90,JS-TGGS120,JS-TGGS150
Main Technical Specification
Model | JS-TGGS90 | JS-TGGS120 | JS-TGGS150 | |
Screw dia. | mm | 90 | 120 | 150 |
L/D ratio | L/D | 33:1 | 33:1 | |
Sheet thickness | mm | 1.1, 1.2, 1.5, 1.8, 2.0, 2.5 | ||
Cutting width | mm | 50 - 300 | ||
Output | Kg/h | 200 | 400 | 500 |
Line speed | m/min | 2--6 | 2--8 | 3--8 |
Installed capacity | KW | 130 | 210 | 320 |
Power consumption | KW | 55 | 110 | 160 |
Dimensions (L×W×H) | m | 33×2.8×2.7 | 36×2.8×2.7 | 38×2.8×2.7 |
Total weight | T | 22 | 26 | 30 |
