- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGSG4000,JS-TGSG5000,JS-TGSG6000

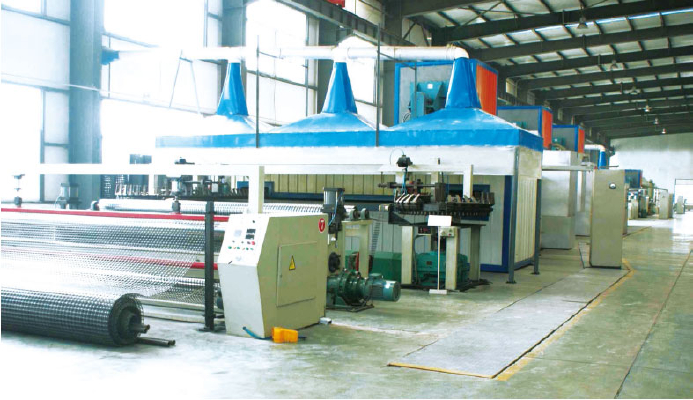

Controlled by PLC, Junsheng geogrid line realizes the remote control, convenient, accurate, and reliable.
Longitudinal stretching part adopts hot stretching rollers, Transversal stretching part is heated by hot air generat-ed from the heat exchanger heated by the hot oil. So, the final single-direction geogrid and bi-direction geogrid is uniformity and high quality.
Geogrid is widely used in fields of water-conservancy, highway, railway, coal mining, and architecture, etc.
It is used to build and protect the dam and reinforce the roadbed of the expressway and railway.
Also used as the flood prevention net, dust-block and wall-protection net, and the mine top net, etc.
- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGSG4000,JS-TGSG5000,JS-TGSG6000
Main Technical Specification
Model | JS-TGSG4000 | JS-TGSG5000 | JS-TGSG6000 | |
Screw dia. | mm | 150 | 160 | 180 |
L/D ratio | L/D | 33:1 | 33:1 | 33:1 |
Single-direction product width | mm | 1200 | 1500 | 2000 |
Bi-direction product width | mm | 4000 | 5000 | 6000 |
Single-direction mesh size | mm | 35, 50, 80, 120, 160, 200 | ||
Bi-direction mesh size | mm | 15, 20, 25, 30, 40, 45 | ||
Dimensions (L×W×H) | m | 90×12×5 | 92×15×5 | 110×15×5 |
