- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGM3000,JS-TGM5000,JS-TGM6000,JS-TGM8000

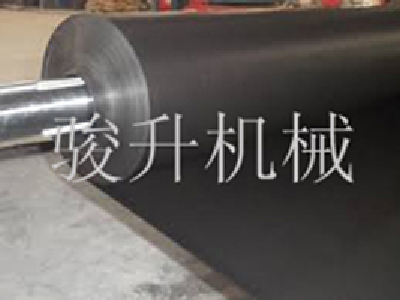

Junsheng geomembrane production line can produce the plastic geomembrane with thickness from 0.3 to 5mm and width of 4000 to 8000mm, the geomembrane can be monolayer, multilayer, both side smooth or embossing sur-
face and laminated with non-woven fabric, the thickness of the geomembrane is uniform.

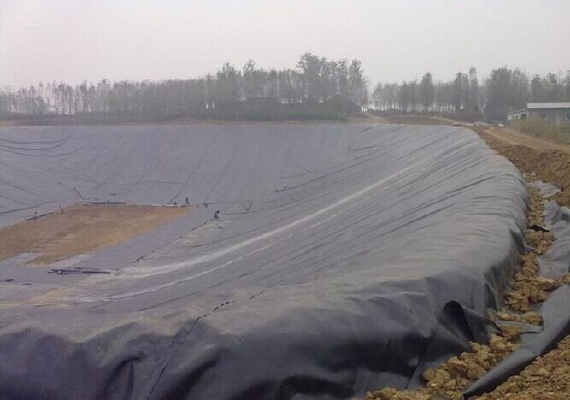

It ' s widely used in waterproofing field in industrial & civil buildings including the green roof, flat roof and the sloping roof. Underground waterproof: reservoir, dam, pool, tunnel, grain depot, artificial engineering, landfill, artifi-cial lake.
- Place of Origin: China
- Brand Name: Jiaxing Junsheng Machinery
- Model Number: JS-TGM3000,JS-TGM5000,JS-TGM6000,JS-TGM8000
Main Technical Specification
Model | JS-TGM3000 | JS-TGM5000 | JS-TGM6000 | JS-TGM8000 | |
Suitable material | HDPE, PP | ||||
Screw dia. | mm | 150 | 150×2 | 150×2 | 180×2 |
L/D ratio | L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Product width | mm | 3000 | 5000 | 6000 | 8000 |
Product thickness | mm | 0.2-2.5 | |||
Output | Kg/h | 500 | 1000 | 1000 | 1200 |
Line speed | m/min | 4--6 | 4--8 | 4--8 | 4--10 |
Installed capacity | KW | 320 | 550 | 550 | 680 |
Power consumption | KW | 160 | 300 | 300 | 400 |
Dimensions (L×W×H) | m | 22×5×2.8 | 24×7×3.5 | 24×7.5×3.5 | 25×10×3.5 |
Total weight | T | 19 | 25 | 28 | 35 |
